Product ID: KYOSHO_10117B
Category: Kyosho
EP Ducted Serie
KYOSHO_10117B

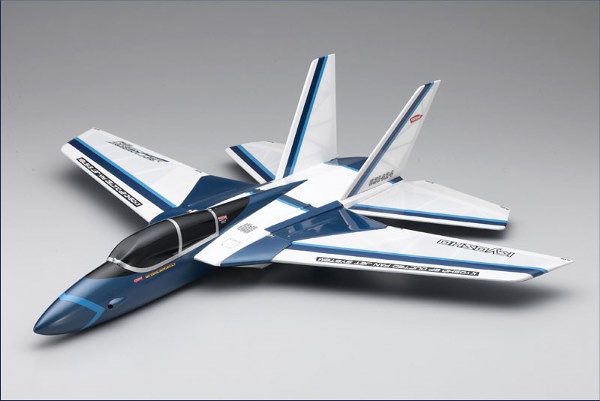

JET VISION DF45
Description: World's first mass-produced
swing wing model aircraft! Experience two
different flight styles in a single jet fighter!
Kyosho's many years of ducted fan airplane design experience combines
with the latest brushless motor technology to
launch a new era in flight performance. Now a
swing wing adds an entirely new dimension. With
one servo you can change the main wing's swept
back angle during flight from your transmitter,
and change the flight characteristics at the
same time.
Spread the main wings out (to the forward
most position) for excellent slow speed control
and stability. Or swing the wings in tight for
high-speed mode to experience the breathtaking
excitement of jet airplane flight. The FRP
fuselage combines with balsa main and tail wings
in a lightweight structure with a stunning color
finish. Depending on your skill level, the jet
also has nimble stunt capability. Only this
airplane provides twice the action and
excitement.

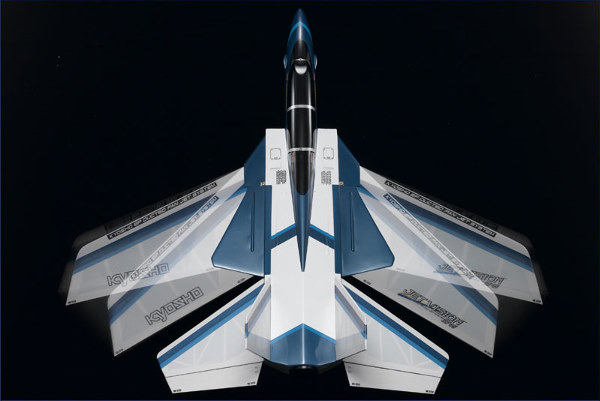

Swing the wings outwards to increase low speed
stability for takeoff and landing. Swept back
angle can be changed during flight.

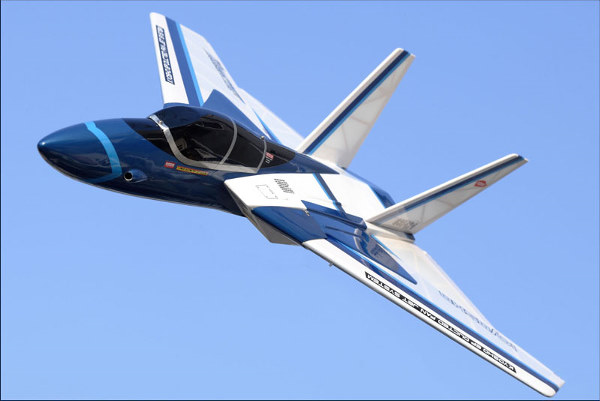

With the main wings swept back, reduced frontal
area and drag realizes breathtaking speed. Swept
back angle can be adjusted during flight from
the transmitter.
Includes motor case and fan in a one-piece unit.
Unique design of stators (fixed fans) and back
cone produce big thrust from it's concentrated
size.

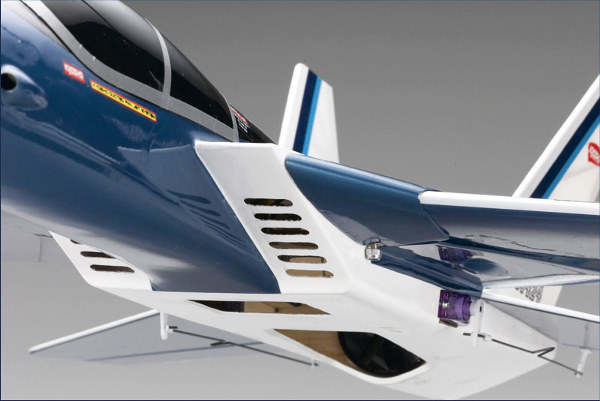

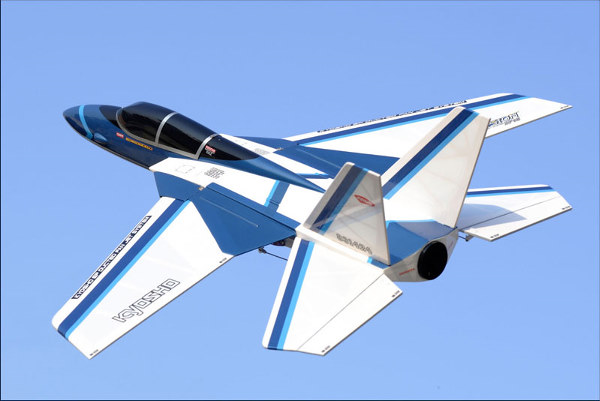

Ultra-small and lightweight DF45 ducted fan unit
is built-into the rear of the fuselage. Realizes
powerful jet-like flight.
Factory assembled FRP fuselage is both
lightweight and strong. Stunning W-curve is
beautifully finished in vivid coloring.
Main components such as the strong
FRP fuselage and balsa main and tail
wings are pre-assembled.
Proven DF45 ducted fan unit produces
stable and powerful thrust.

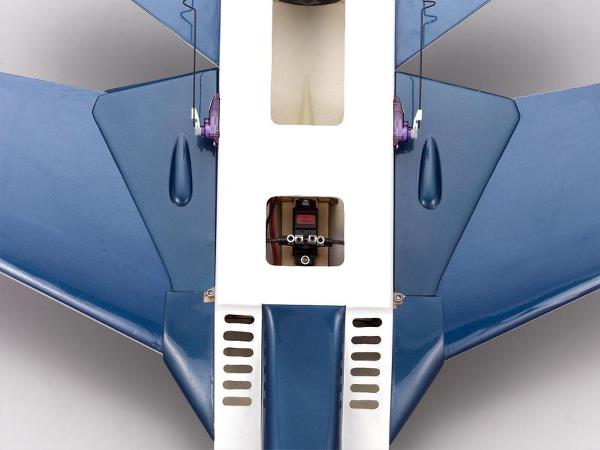

3-servo specifications provide free
control of the elevon and swing wing's
swept back angle.
Brushless motor and fan combine in a
one-piece high-efficiency fan unit that
produces 270g of thrust (fan unit
thrust).
One-piece shroud's brushless motor
generates 50,000 RPM of pulling power.
Battery can be changed simply by
removing the canopy (secured with
screw). Servo linkages also do not
require any special work.
11.1V-700 - 910mAh Li-Po (Lithium Polymer)
battery provides the high power.
-
Required For Operation:
- R/C
System / 4-channel, 3 micro servo (1 for
swing wing)
-
Controller / ESC Sky victory BLS25
-
Battery / 11.1V-700 - 910mAh Lithium Polymer
battery
-
Charger for Li-Po battery
-
Balancer for Li-Po battery
-
Batteries for R/C system
